STRAPPING MACHINES
*Product may vary based on availability

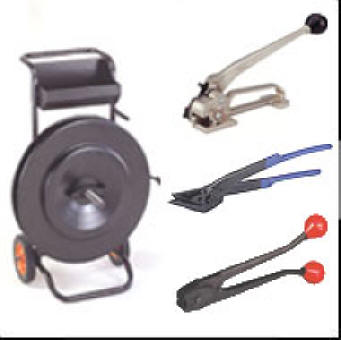

Strapping Cart
This universal strapping cart is designed for use with both Poly and Steel strapping. Now you only need one cart for both types of strapping. Unique multi-tier discs allow for use with strapping core sizes of
16" x 3", 16" x 6" and 8" x 8". Cart includes storage tray for holding clips, seals and tools. Heavy-duty wheels for portability. Steel construction with powder coat finish.
| Strapping Cart | |||
| Model | Strapping It Accepts | Overall Size (WxDxH) | Net Weight (lbs) |
| STRAP-PS-HD | Steel & Poly | 25"x20-1/4"x40-1/4" | 70 |
Vertical/Horizontal Strapping Cart
This unique cart allows the operator to apply strapping both vertically and horizontally around the load. For use with both steel and poly strapping. The maximum core width is 5", while the minimum core width is 21⁄2". Core diameter is 16" with a minimum of 133⁄4". To use, simply engage outer detents (disengaging inner) and turn the removable
handle until strap is in the horizontal position. Once in the horizontal position, disengage the outer detents and engage the inner detents. The strap can now be raised and lowered from 28" down to 8" with the same turn handle. Each unit comes standard with 10" x 3" pneumatic wheels. The equipment tray measures 16"W x 51⁄2"D. Strapping is not included.
| Vertical/Horizontal Strapping Cart | |||||
| Model | Overall Size (WxDxH) | Feed Strap Height | Standard Material | Accepted Strapping | Net Weight (lbs) |
| STRAP-VH | 27"x27"x40" | 8"to28" | 24" Max. Dia. | Steel & Poly | 140 |
Manual Pallet Probe Strapping Cart
• Increase Productivity • Economical, Fast, Easy • Low Maintenance
The Manual Pallet Probe is a quick and simple answer to a long time dilemma - getting poly strapping through your pallet. To use, simply transport cart to your loaded pallet, extend arm and run strapping to
end clip. After strapping is secure, roll cart probe into pallet along center stringer. The strapping arm will then protrude out the other end allowing the operator to pull the strapping up and over pallet. Unit accepts
polypropylene strapping. Tray size is 19"W x 53⁄4"D. The maximum core width is 5", while the minimum core width is 21⁄2". Overall material diameter is 16" with a minimum of 133⁄4". Strapping is not included.
| Manual Pallet Probe Strapping Cart | ||||
| Model | Arm Length | Standard Material | Accepted Strapping | Net Weight (lbs) |
| STRAP-P2 | 40" | 24" Max. Diameter | Polypropylene | 110 |
