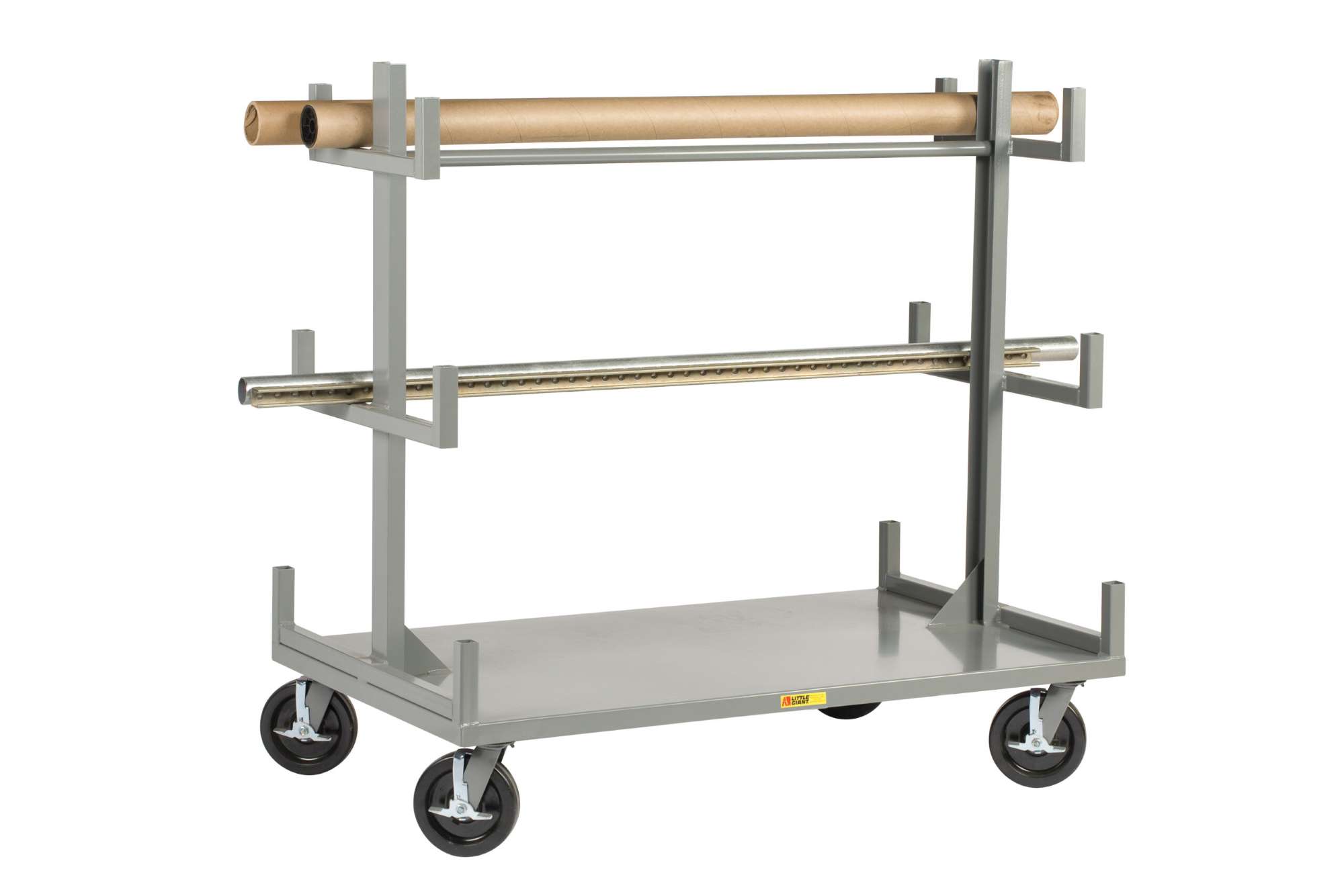

Portable Bar & Pipe Truck

Model
BRT-3660-8PHBK



Rugged, all-welded construction with 3 load levels. Structural channel uprights with 1-1/2” square tube arms have 4-1/2” high stops on ends for load retention. 12 gauge steel lower deck stores and transports smaller part, packages, etc. Platform height 11”, overall height 58”. Four swivel casters for maneuverability with 8” x 2” phenolic wheels for ease of movement. Wheel brakes on all four wheels to help prevent unwanted movement. Capacity 3600 lbs. overall, 2000 lbs. per level evenly distributed. Horizontal storage space (each side): Top = 7-1/2”, Middle = 11”, Bottom = 15”Product Details Chart

Model # Deck Size Weight (lbs.)
BRT-3648-8PHBK 48" x 36" 265 lbs.
BRT-3660-8PHBK 36" x 60" 285 lbs.
BRT-3672-8PHBK 36" x 72" 306 lbs.
