PALLET DUMPER

Pallet Dumper

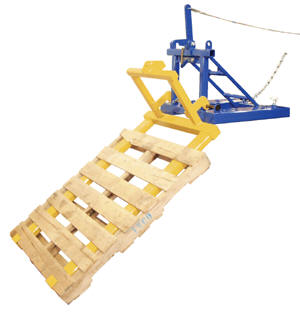

Dump loaded pallets easily without leaving the seat of your fork truck with the all welded steel constructed Pallet Dumper.  Unit fits to forks and is secured by a safety chain.  Two retainers hold the pallet in place while dumping the contents into the hopper or dumpster.  Once the retainers have cleared the opposite end of the pallet, raise the forks and the retainers will hold the pallet on the forks.  Lift the pallet to the dumping height and rest the pallet on the edge of the dumpster.  Pull the chain, releasing the fork carriage, allowing the pallet to tilt and dump the load into the hopper or dumpster.  When finished, simply lower until the carriage latches.

Design Features:

• All welded steel
• Chain locking device/chain release
• Two retainers hold pallet in place while dumping contents into the hopper or dumpster
• Secure locking latch

Specifications:

• Standard fork dimensions are 7-1/2" wide x 2-1/2" high on 25" center.
• Capacity is 2,000 lbs.
• 52" long forks
• O.D. of forks is 30-13/16"
• 32" Overall width
