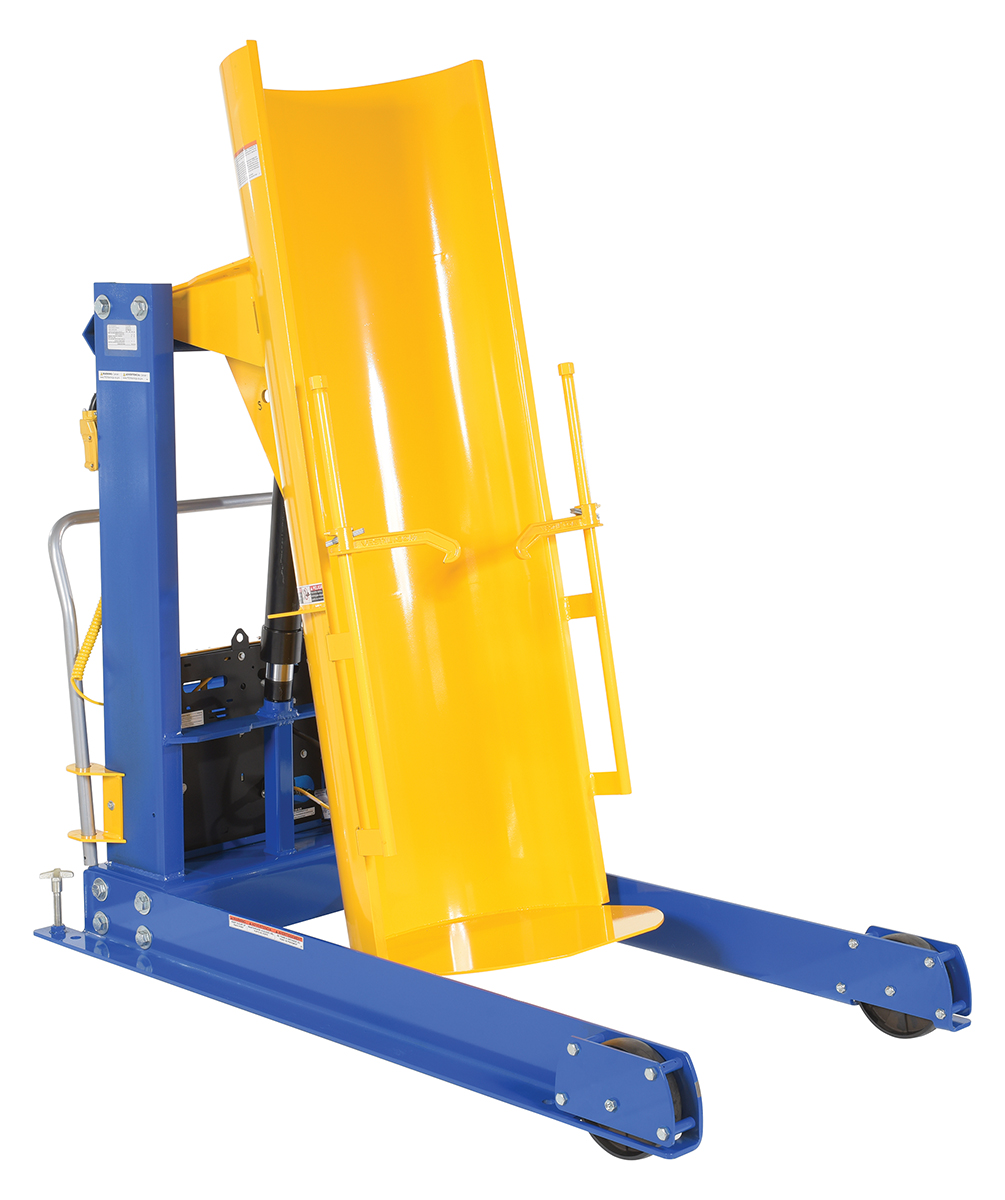

HYDRAULIC DRUM DUMPER
The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3⁄4 HP motor, 120V single phase, 60Hz with an 8 foot long power cord and plug. Upper travel limit switch, emergency brass safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Chute is rotated with a hand held control on an 8 ft. long coil cord standard. SSC option is constructed with type 304 Stainless Steel in Mill Finish. Includes stainless steel chute, base plate, vertical height bars and welded brackets. Chute is painted with standard enamel paint on back of chute and frame. Adjustable height clamps coated in Steel-It™ coating. This option must be ordered with a Hydraulic Drum Dumper.
| Specialty Polishes And Finishes | |
 |
|
| Stationary Hydraulic Drum Dumpers | |||||||
| Model | PDF's | Description | Dump Height | Rotated Height | Level Height | Capacity (lbs) | Net Weight (lbs) |
| HDD-36-7-S | Stationary Unit | 36" | 91-3/4" | 60-1/2" | 750 | 735 | |
| HDD-48-7-S | Stationary Unit | 48" | 112-1/4" | 72-1/2" | 750 | 876 | |
| HDD-60-7-S | Stationary Unit | 60" | 132-3/4" | 84-1/2" | 750 | 971 | |
| HDD-72-7-S | Stationary Unit | 72" | 153" | 96" | 750 | 1013 | |
| HDD-36-10-S | Stationary Unit | 36" | 91-3/4" | 60-1/2" | 1,000 | 824 | |
| HDD-48-10-S | Stationary Unit | 48" | 112-1/4" | 72-1/2" | 1,000 | 897 | |
| HDD-60-10-S | Stationary Unit | 60" | 132-3/4" | 84-1/2" | 1,000 | 1002 | |
| HDD-72-10-S | Stationary Unit | 72" | 153" | 96" | 1,000 | 1055 | |
| HDD-36-15-S | Stationary Unit | 36" | 91-3/4" | 60-1/2" | 1,500 | 966 | |
| HDD-48-15-S | Stationary Unit | 48" | 112-1/4" | 72-1/2" | 1,500 | 1029 | |
| HDD-60-15-S | Stationary Unit | 60" | 132-3/4" | 84-1/2" | 1,500 | 1134 | |
| HDD-72-15-S | Stationary Unit | 72" | 153" | 96" | 1,500 | 1186 | |
| Portable Hydraulic Drum Dumpers | |||||||
| Model | PDF's | Description | Dump Height | Rotated Height | Level Height | Capacity (lbs) | Net Weight (lbs) |
| HDD-36-7-P | Portable Unit | 36" | 93-1/4" | 60-1/4" | 750 | 798 | |
| HDD-48-7-P | Portable Unit | 48" | 113-3/4" | 72-1/4" | 750 | 871 | |
| HDD-60-7-P | Portable Unit | 60" | 134-1/4" | 84-1/4" | 750 | 966 | |
| HDD-72-7-P | Portable Unit | 72" | 155-3/4" | 97-1/4" | 750 | 1008 | |
| HDD-36-10-P | Portable Unit | 36" | 93-1/4" | 60-1/4" | 1,000 | 819 | |
| HDD-48-10-P | Portable Unit | 48" | 113-3/4" | 72-1/4" | 1,000 | 892 | |
| HDD-60-10-P | Portable Unit | 60" | 134-1/4" | 84-1/4" | 1,000 | 997 | |
| HDD-72-10-P | Portable Unit | 72" | 155-3/4" | 97-1/4" | 1,000 | 1039 | |
| HDD-36-15-P | Portable Unit | 36" | 93-1/4" | 60-1/4" | 1,500 | 960 | |
| HDD-48-15-P | Portable Unit | 48" | 113-3/4" | 72-1/4" | 1,500 | 1023 | |
| HDD-60-15-P | Portable Unit | 60" | 134-1/4" | 84-1/4" | 1,500 | 1128 | |
| HDD-72-15-P | Portable Unit | 72" | 155-3/4" | 97-1/4" | 1,500 | 1176 | |
| Upgrade To Stainless Steel Chute (must be ordered with above drum dumpers) | |||||||
| Capacity 750 lbs. | Capacity 1,000 lbs. | Capacity 1,500 lbs. | |||||
| Model | Model | Model | |||||
| SSC-36-7 | SSC-36-10 | SSC-36-15 | |||||
| SSC-48-7 | SSC-48-10 | SSC-48-15 | |||||
| SSC-60-7 | SSC-60-10 | SSC-60-15 | |||||
| SSC-72-7 | SSC-72-10 | SSC-72-15 | |||||
