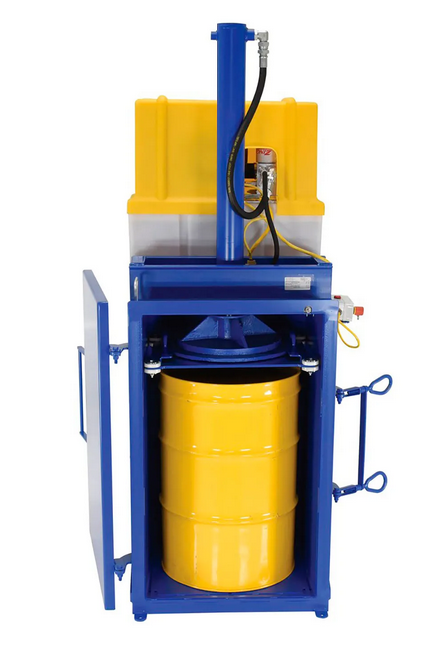

HYDRAULIC DRUM CRUSHER
The model HDC-900-IDC crushes 55 gallon steel drums to approximately 6" high and resets automatically to crush another drum in only 25 seconds. The standard drum compacting feature allows you to compact products within the drum by simply removing the drum crushing platen. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload and a door interlock system, which will prevent the motor from running unless the door is closed.
FEATURES
- 38,000 pounds of crushing power
- Drum head piercer to allow for drum venting
- Built-in fork pockets to aid in transporting
- 6.5 Hp motor is 208-230/460V, 3-phase, 60 Hz
- Protective plastic cover on power unit
- 15 gallon oil reservoir
- Dual speed hydraulic pump provides quick, 25 second cycle time
- 24V NEMA-4 push-button controls with key lockout
- 3-position "COMPACT - OFF - CRUSH" key selector switch
- Mushroom head emergency stop button
- Relief valve to prevent hydraulic system overload
- Door interlock system with key
- Protective cover for indoor and outdoor applications
- Meets OSHA and JIC standards
| Hydraulic Drum Crusher/Compactor | |||
| Model | PDF's | Description | Net Weight (lbs) |
| HDC-900-IDC | Drum Crusher/Compactor (standard 3 PH cycle time is 25 seconds) | 1641 | |
| HDC-24/7 | - | Continuous Duty Rating Motor | 100 |
| HDC-DPN | - | Aluminum Drip Pan (measures 30"Wx20"Lx3"H)(holds 7.5 Gal.) | 31 |
| HDC9-1 | Single phase, 3 HP power unit (option for HDC-900-IDC) (Requires 50 Amp wiring and 40 Amp Breaker) Cycle time increases to approx. 70 seconds | ||
Crushes a drum to approximately 6" high
Includes removable drum crushing platen & a 2
position key switch to select crush or compact
Safety door interlock system
