Caster Steer Trailers

This versatile unit can be used as an independent platform truck for manual order picking and then quickly connected into a train of trailers. The caster steer design means wheels stay under the load at all times, providing better stability with unevenly distributed loads. The two swivel casters rotate 360°, providing excellent maneuverability even in tight areas.

Reinforced 12 gauge steel deck is 11-1/2” high

Heavy service casters to withstand the rigors of towing

8" x 2" mold-on rubber wheels with cast iron centers and roller bearings

Removable pipe rack/pushbar handle extends 29” above the deck

Ring drawbar stays in upright position for manual operation as a platform truck

Pin and clevis coupler at rear

Product Details Chart

Model #	Deck Size	Weight (lbs.)
CS-3060-8MRHD	30" x 60"	160 lbs.
CS-3072-8MRHD	30" x 72"	175 lbs.
CS-3660-8MRHD	36" x 60"	178 lbs.
CS-3672-8MRHD	36" x 72"	195 lbs.

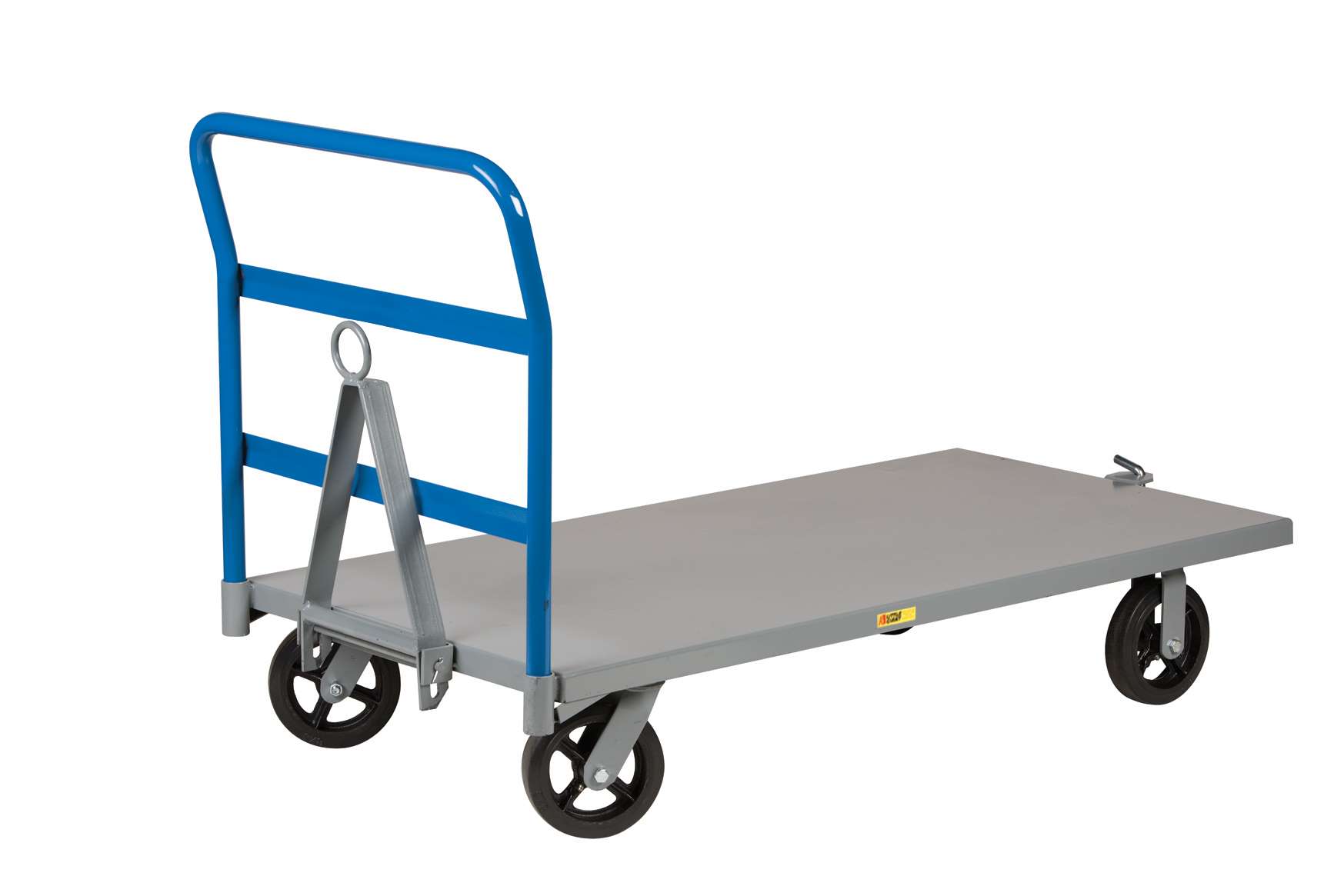

Model CS-3060-8MRHD

PIN & CLEVIS REAR COUPLER
CS-3060-8MRHD-2

Versatile ring type wishbone
coupler with 2-1/2"
I.D. Ring can also be used
with most pintle hitches.

Wishbone half of coupler stands upright when not in use

Custom Designs

Trailers can be engineered with any number of combinations of deck size, special superstructure, and running gear to meet the unique demands of your specific application.
