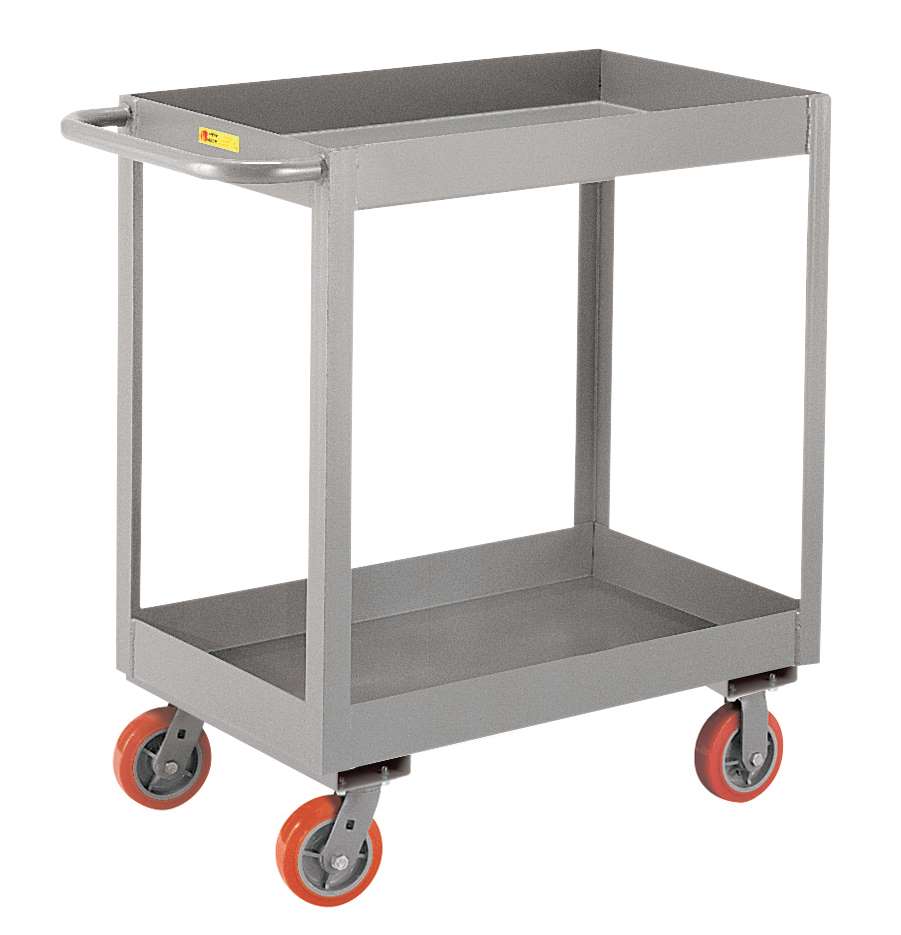

3 Inch Deep Shelf Trucks

These trucks combine the convenience of 3" deep trays for accumulating and transporting smaller parts with the rugged durability of an all-welded unit. Shelves are formed from 12 gauge steel, with 3" high sides. 2 swivel and 2 rigid non-marking polyurethane casters for easy maneuverability and quiet operation. Clearance between shelves is 22-1/2".

1200 lbs. Capacity; 5" Polyurethane casters, 35" overall height

3600 lbs. Capacity; 6" Polyurethane casters, 36-1/2" overall height

Product Details Chart

Model # Load Capacity Shelf Size WxL Wheel Description Weight (lbs.)
DS1830X3-5PY 1200 lbs. 18" x 30" 5" Polyurethane 71 lbs.
DS1830X3-6PY 3600 lbs. 18" x 30" 6" Polyurethane 81 lbs.
DS2436X3-5PY 1200 lbs. 24" x 36" 5" Polyurethane 95 lbs.
DS2436X3-6PY 3600 lbs. 24" x 36" 6" Polyurethane 105 lbs.
DS2448X3-6PY 3600 lbs. 24" x 48" 6" Polyurethane 132 lbs.



Model
DS1830x3-5PY
