ADJUSTABLE PALLET STAND

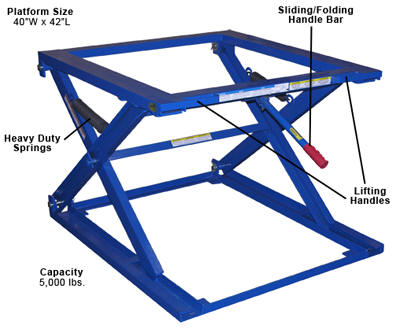

Designed for use as an adjustable-height work table. Includes springs to assist with height-adjustment only when unloaded.  The all welded steel constructed Pallet Stand, model PS-4045, has heavy duty springs which allows one person to adjust it up and down.


The Adjustable Pallet Stand is also available with a bolt-on carousel, model PS-4045-CA.  This 40" diameter carousel manually rotates 360.  Three working heights including the carousel are: 22-1/2", 32-3/4", 37-1/2" and a lowered height of 12-1/4".  Capacity is 4,000 lbs.  The carousel stands 2-1/4" high off the Pallet Stand.


PS-4045-CK (w/ optional Caster Kit)

Pallet Stand
Model PDF's Platform (WxL) Capacity (lbs) Lowered Height First Setting Second Setting Third Setting Net Weight (lbs)
PS-4045   40"x42" 5,000 10" 20-1/4" 30-1/2" 35-1/4" 224
PS-4045/CA   40"x42" 4,000 12" 22-1/2" 32-3/4" 37-1/2" 320
Caster Kit for Pallet Stand Model PS-CK
